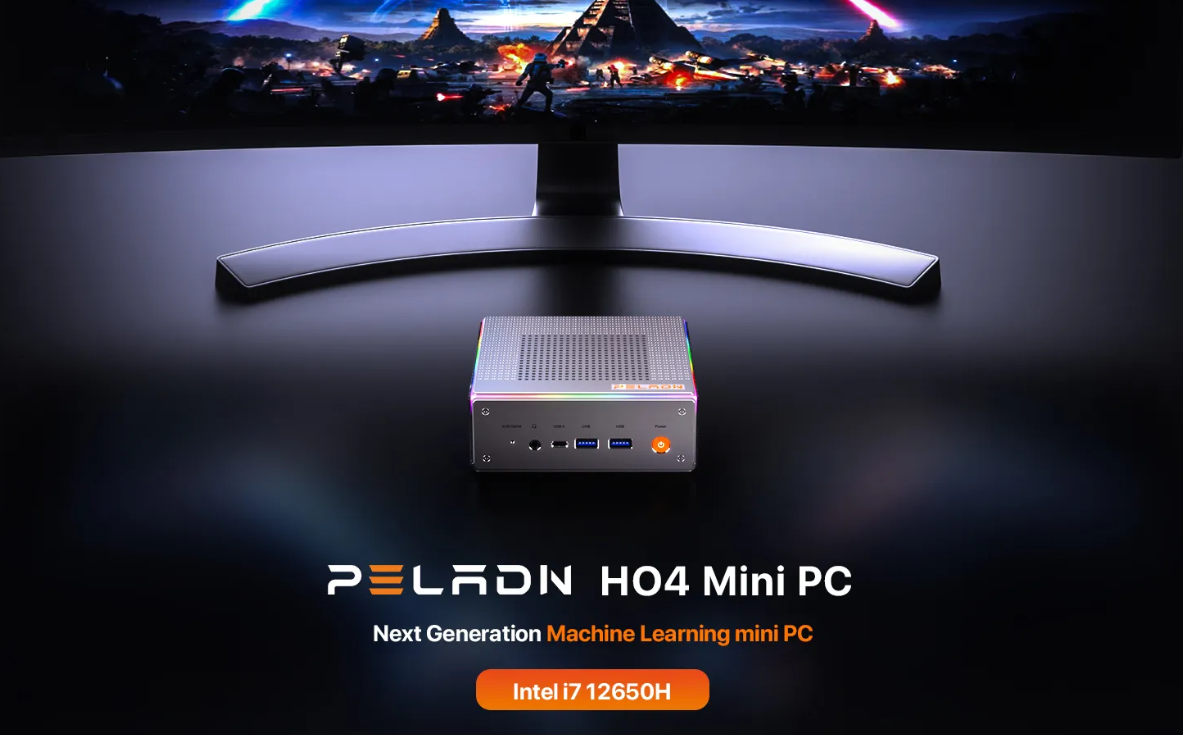

Traditional desktop towers are bulky and messy with tangled cables, taking up huge desk space and failing to meet modern demands of lightweight office work, creative design and home entertainment. The HO4 12650H Mini PC packs a 12th Gen standard-voltage Core CPU into an ultra-small chassis. It combines portable appearance, powerful performance and comprehensive expandability, covering office work, video editing, live streaming, casual gaming, soft routing and more. It is a cost-effective replacement for bulky traditional desktops.
1. Premium Metal Chassis, Ultra-Compact & Space-Saving
The HO4 12650H features an integrated full aluminum chassis crafted with precision CNC cutting. Measuring only 136×128×52mm and weighing less than 1kg, it can be held easily with one hand. Its tiny footprint fits small apartments, compact workstations, meeting rooms and TV cabinets. A free wall mount bracket is included to attach the mini PC behind your monitor, completely freeing up desk space.
RGB ambient light strips run alongside large mesh ventilation panels. The minimalist industrial design balances stylish lighting effects and efficient heat dissipation, upgrading both business and gaming desktop setups.
2. Intel i7-12650H Standard-Voltage CPU, Zero Bottlenecks for Multitasking & Creation
At its heart sits the Intel 12th Gen Core i7-12650H processor with a 10-core 16-thread layout (6 Performance Cores + 4 Efficient Cores), 24MB smart cache, a base frequency of 2.3GHz and max turbo frequency up to 4.7GHz, delivering stable full 45W performance.
For daily office tasks, you can run dozens of browser tabs, large Excel spreadsheets, Photoshop, video conferencing and office communication software simultaneously without lag. The built-in Iris Xe integrated GPU supports 4K hardware decoding, enabling smooth short-video editing with PR/AE, CAD drawing and photo post-production — ideal for designers, video editors, programmers and accountants.
In spare time, it runs mainstream online games including LOL, CSGO and DNF stably at over 60 FPS with 1080P high graphics settings, balancing work and entertainment.
Fully upgradeable hardware: dual-channel DDR4 3200 RAM expandable up to 64GB, dual M.2 PCIe 4.0 NVMe SSD slots for massive storage to save design materials, documents and games.

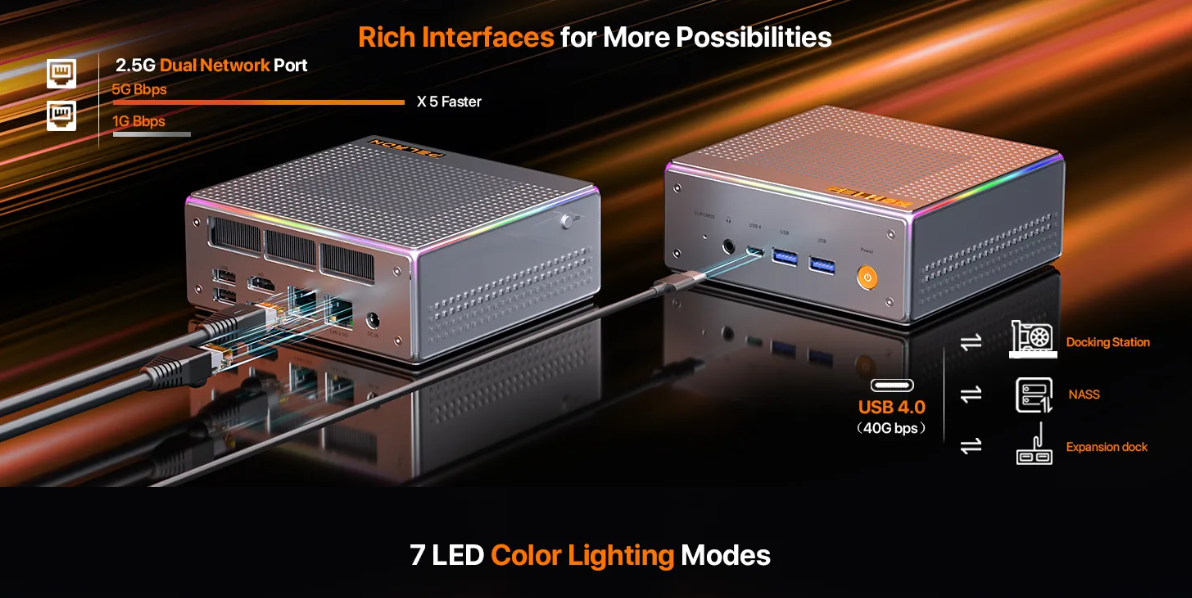

3. Full-Set Rich Interfaces, Ideal Business Device with Triple Display & Dual 2.5G LAN
Front and rear panels are equipped with complete ports, eliminating the need for extra docking stations to connect all peripherals:
Front: Full-function USB4 40Gbps Type-C, 2×USB3.2 Gen2, 3.5mm audio jack, power button
Rear: Dual 2.5G Gigabit LAN ports, HDMI 2.0, DP 1.4, 2×USB2.0, DC power port
Key practical advantages:
- High-speed USB4 port: 40Gbps bandwidth for ultra-fast portable SSD file transfer, supporting video output, reverse charging and external GPU docking.

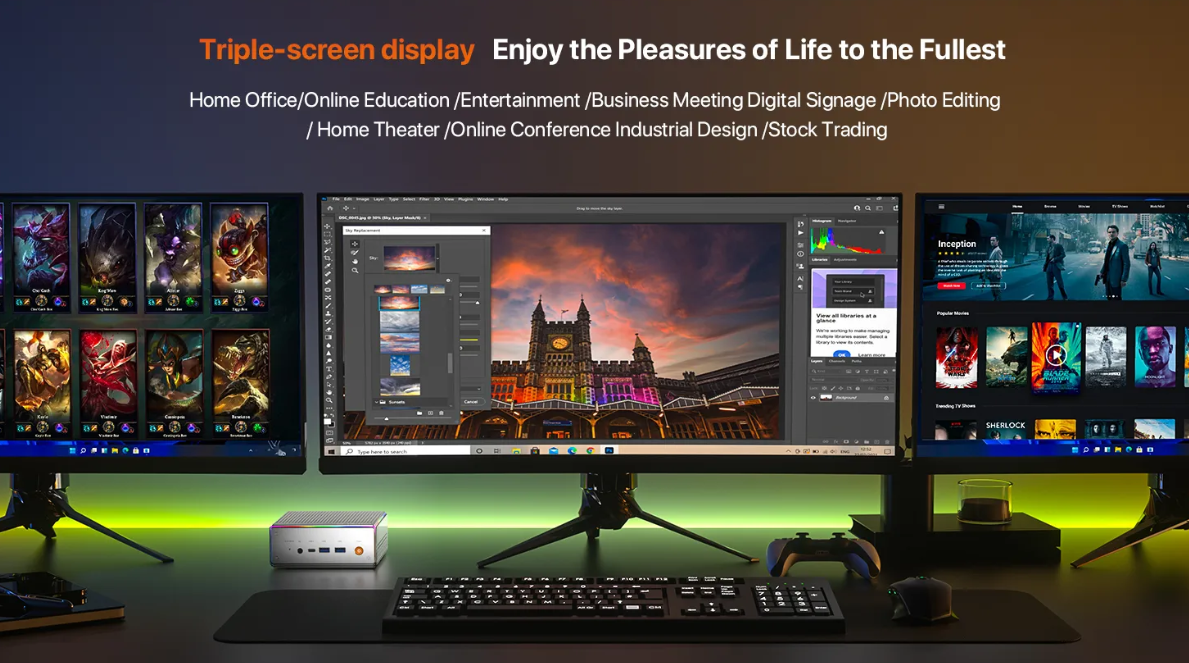

- Triple independent 4K displays: HDMI + DP + USB4 triple video outputs drive three 4K@60Hz monitors at once, greatly boosting efficiency for stock trading, split-screen editing and multi-window office work.
- Dual 2.5G Ethernet ports: Link aggregation support doubles network bandwidth, perfect for live streaming, studio networking, soft routing and small file servers with stable low-latency connection.
4. High-Speed Wireless & Silent Cooling for All-Day Stable Operation
Equipped with WiFi 6 + Bluetooth 5.2 dual-band 2.4G/5G wireless module, it delivers fast low-latency internet. Bluetooth quickly connects wireless headsets, game controllers and keyboards to cut cable clutter.
The cooling system consists of multiple heat pipes and a large centrifugal fan paired with full mesh air ducts for circular airflow. It maintains steady temperatures under heavy loads such as long-time rendering and gaming; the fan runs quietly during daily office use without harsh noise.
Pre-installed Windows 11 OS supports auto power-on after power loss and Wake-on-LAN, simplifying batch deployment and management for enterprise computer rooms and studios.
5. Wide Compatibility for All Scenarios
- Business Office: Corporate desktop, programmer workstation, financial PC, cashier terminal, meeting presentation device
- Creative Design: Graphic workstation, short-video editor, CAD drawing, photo post-production rig
- Home Use: 4K media player, online learning computer, casual gaming mini PC
- Commercial Studio: Live streaming host, multi-screen trading PC, soft router, local small storage server
Full Product Specifications
Model: HO4 Mini PC 12650H
CPU: Intel Core i7-12650H, 10C/16T, Max 4.7GHz
Chassis: Full aluminum alloy with RGB ambient light strip
Dimension & Weight: 136×128×52mm, Net Weight 0.9kg
Memory: Dual-channel DDR4 3200MHz, expandable up to 64GB
Storage: Dual M.2 PCIe 4.0 NVMe SSD slots
Display Output: HDMI2.0 + DP1.4 + USB4 Type-C, triple 4K@60Hz display
Wired Network: Dual 2.5G RJ45 Ethernet Ports
Wireless Module: WiFi 6 + Bluetooth 5.2
Operating System: Windows 11
Standard Accessories: Wall mount bracket, power adapter, user manual
