Tired of bulky power-hungry traditional desktops with limited expandability? The PELADN WI-8 N150 Mini PC is engineered for professional lightweight computing, equipped with the new Intel Twin Lake N150 quad-core CPU, exclusive Symbiotic Drive dual M.2 storage architecture, dual Gigabit Ethernet ports and triple 4K independent display output. This palm-sized mini computer balances powerful performance, versatile expansion and ultra-low power draw, making it the cost-effective all-rounder for office, retail, media and DIY networking projects.
Ultra-Compact Metal Chassis with VESA Mount Support
Measuring only 120×120×42mm and weighing merely 300g, the WI-8 fits easily into backpacks for business trips.
- Matte black integrated aluminum body with perforated heat dissipation holes, delivering premium texture and efficient thermal management;
- Free VESA mounting bracket included to attach the mini PC behind monitors, completely clearing up your desk space;
- Only 15W total TDP power consumption, cutting electricity bills by 80% compared to full-size desktops, ideal for 24/7 operation in retail stores and small studios.
Upgraded Intel N150 Quad-Core Processor for Smooth Multitasking
Powered by Intel 7 process Twin Lake N150 4C/4T CPU, base clock 3.4GHz, max boost 3.6GHz, 6MB L3 cache, 30% performance boost over older N100 chips:
- 4K AV1 Hardware Decoding: Integrated 24EU UHD Graphics running at 1000MHz, flawlessly plays local 4K Blu-ray and streaming videos without frame drops;
- Lag-Free Heavy Multitasking: Run full Office suites, 20+ browser tabs, video conferencing software and financial spreadsheets simultaneously with zero stuttering;tive Work SupporHandles 1080P short video editing, lightweight CAD drawings and photo retouching smoothly for content creators;
- Silent Temperature Control Cooling System: Custom side airflow duct paired with low-speed silent fan, operating noise as low as 30dB for quiet use in offices, bedrooms and retail counters.

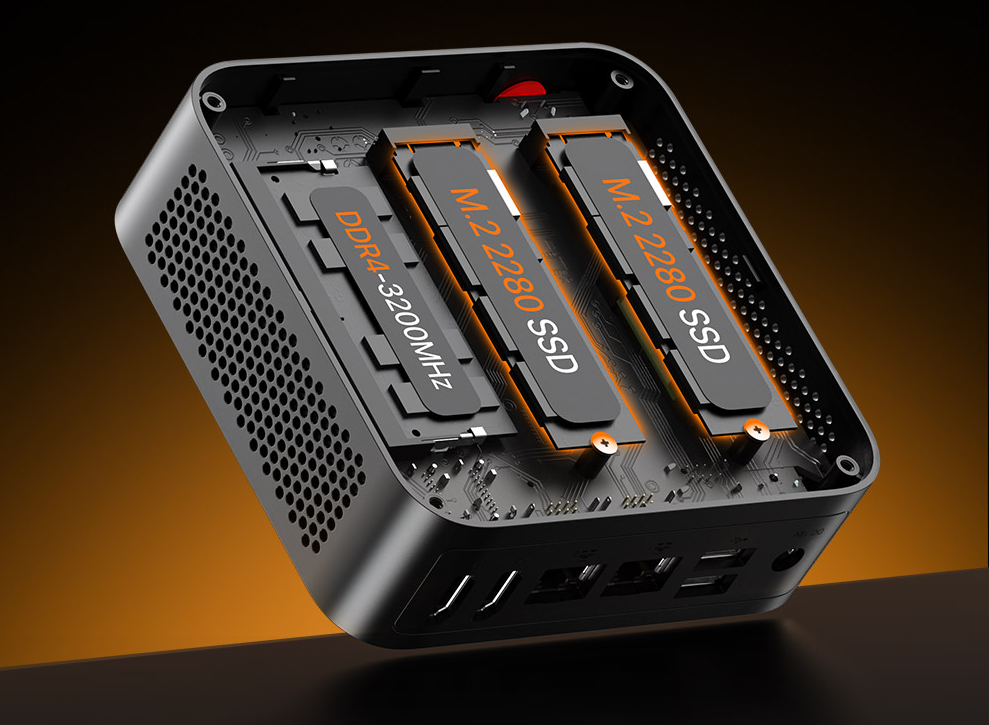

Symbiotic Drive Dual M.2 2280 Storage Architecture for Expandable Mass Capacity
The standout feature of WI-8 is dual independent M.2 2280 slots, our patented Symbiotic Drive storage system that separates system and bulk data storage for balanced speed and capacity:
- Both slots support PCIe 3.0 NVMe & SATA protocols, single SSD up to 4TB, total storage expandable to 8TB;
- Optimized usage: Install OS & software on fast NVMe SSD for quick boot/load speeds, store footage, surveillance recordings and media files on the second high-capacity drive;
- Memory upgradeable up to 32GB via single DDR4 3200MHz SO-DIMM slot, stable for multi-thread soft router and heavy multitasking workloads;
- Tool-free disassembly: Remove 4 bottom screws to swap RAM and SSD within 5 minutes, friendly for beginners.
Dual Gigabit LAN Ports & Full-Range I/O Interfaces, Triple 4K Multi-Monitor Output
Well-organized front & rear ports plus dual RJ45 LAN ports create unrivaled expandability for business and DIY networking:
Front Panel (Quick Plug & Play)
1×Full-Function USB3.2 Gen2 Type-C: 10Gbps data transfer, DP1.2 video output & PD charging all-in-one;
2×USB3.2 Gen2 Type-A ports for fast external storage; 3.5mm combo audio jack for headset & mic; Independent CMOS reset button for one-click system recovery.
Rear Panel (Permanent Peripherals Connection)
2×HDMI2.0 video ports + front Type-C support triple independent 4K@60Hz display, perfect for split-screen finance work, design editing and multi-channel surveillance monitoring;
2×USB2.0 ports for permanent connection of keyboard, mouse, printers and barcode scanners;
Dual 1000Mbps RJ45 Ethernet Ports: The core professional advantage, ideal for building soft routers, firewalls and private NAS servers with stable dual-line network split;
Wide-voltage DC power input supports global 100-240V power supply, suitable for cross-border commercial deployment.
Wireless Connectivity
Built-in Dual-Band WiFi 5 (2.4G+5G) + Bluetooth 4.2 for stable wireless casting, Bluetooth peripherals and projector connection.
6 Universal Application Scenarios
- Multi-Screen Business Office PC: Separate internal & external networks via dual LAN ports, triple display boosts work efficiency for finance, design and operation teams;
- Retail POS Terminal: Wall-mounted in cafes & supermarkets, stable 24/7 cashier system operation with dual drive data backup;
- Home Media HTPC: Local 4K movie playback, NAS media streaming and low-power all-day download server;
- DIY Network Hardware: Build soft router, private cloud storage, firewall and surveillance recording server with dual Gigabit LAN;
- Student Online Learning Device: Split-screen class materials & note-taking, ultra-portable for dorm and library use;
- Light Design Workstation: Short video editing, photo retouching and lightweight blueprint processing, replacing bulky laptops.
OS Compatibility & Package List
Pre-installed genuine Windows 11 Pro, fully compatible with Windows 10, Ubuntu, CentOS and open-source soft router Linux systems.
Package includes: 12V3A wide-voltage power adapter, HDMI cable, VESA mounting bracket, fixing screws & user manual.
Full Product Specification Table
| Item |
Detailed Spec |
| CPU |
Intel Twin Lake N150 4C/4T, 3.4GHz~3.6GHz, 6MB L3 Cache |
| GPU |
UHD Graphics 24EU, 1000MHz, AV1 4K Hardware Decoding |
| Memory |
DDR4 3200MHz, single slot expandable up to 32GB |
| Storage |
Dual M.2 2280 (PCIe/SATA), max total 8TB Symbiotic Drive architecture<
|
